Horizontal Bright Beer Tank

Brewery banner

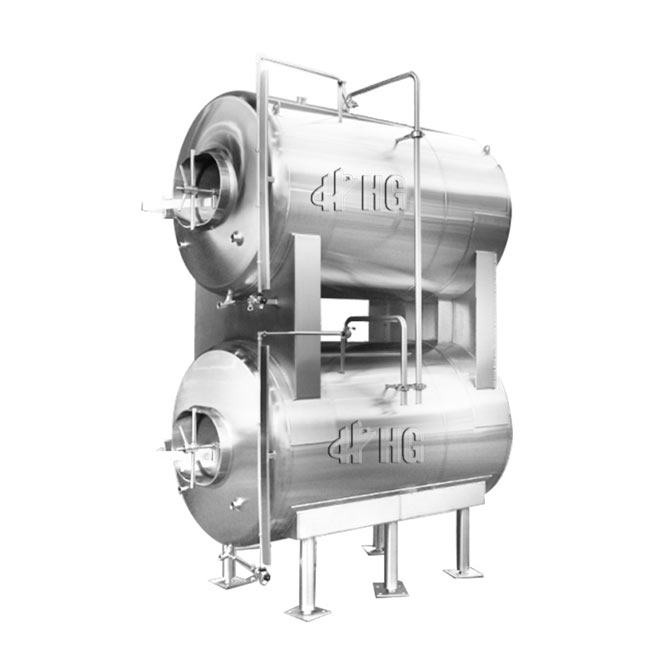

Horizontal Bright Beer Tank

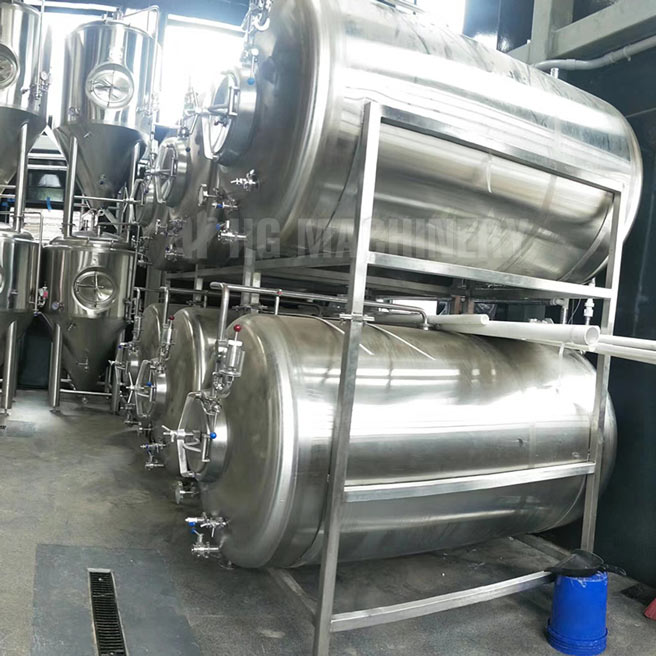

Horizontal Bright Beer Tank
InsideInside
Polishing DetailPolishing Detail
SUS 304 Butterfly ValveSUS 304 Butterfly Valve
Sample ValveSample Valve
Horizontal Bright Beer Tank Inside Polishing Detail SUS 304 Butterfly Valve Sample Valve

Horizontal Bright Beer Tank is often also called serving tank, tax determination tanks or clear beer tank (=CBT), Jacketed Bright Beer Tank (=BBT) or maturation or conditioning tank. Made of stainless food steel DIN 1.4301 (AISI 304). Standardized dimensions and equipment, or according to individual customer requirements. Function:Beer maturation/conditioning/serving/filtered beer receiving. 100% TIG welding with pure argon gas shield, Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner, Insulation: Polyurethane; TH=80mm

VIDEO

FEATURES

  • Made of stainless food steel DIN 1.4301 (AISI 304)
  • Standardized dimensions and equipment, or according to individual customer requirements
  • Interior Shell: SUS304 full welded; TH=4mm
  • Exterior Shell:SUS304 full welded; TH=2.5mm
  • 100% TIG welding with pure argon gas shield
  • Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
  • Insulation: Polyurethane; TH=80mm
  • Glycol Jacket on side wall
  • Stringent tank leakage test by water and pressured gas
  • Stringent Jacket leakage test by water and pressured gas
  • Flanged manway on top
  • CIP arm with 360° coverage CIP spraying ball
  • Full sanitary sampling valve
  • Mechanical relief valve 2 bar on CIP arm
  • Carbonation port with stone
  • Shockproof pressure gauge on CIP arm
  • Tri clamp discharge arm with butterfly valve
  • Thermowell for high accuracy temperature sensor
  • 3 or 4 pcs completely SUS304 heavy duty legs with leveling pad
  • Sanitary level tube with stainless steel ball valves
  • Complete valves, fittings and all parts

PARAMETERS

Model HG-FJ-1000L
Capacity Useful capacity: 1000L; Gross capacity: 1250L
Material SUS304
Application Restaurant, bar, hotel, brewery
Out size Ø1260*2800mm
Cooling method Jacket section cooling
Thickness Inner: 3.0mm; External2.0mm
Outrigger Ø102mm*4
Test pressure 0.3Mpa
Working pressure 0.2Mpa
Heat exchange area 3m2
Weight 450kg
