200-500L Distillation Equipment

Brewery banner

200-500L Distillation Equipment

200-500L Distillation Equipment
200-500L Distillation Equipment

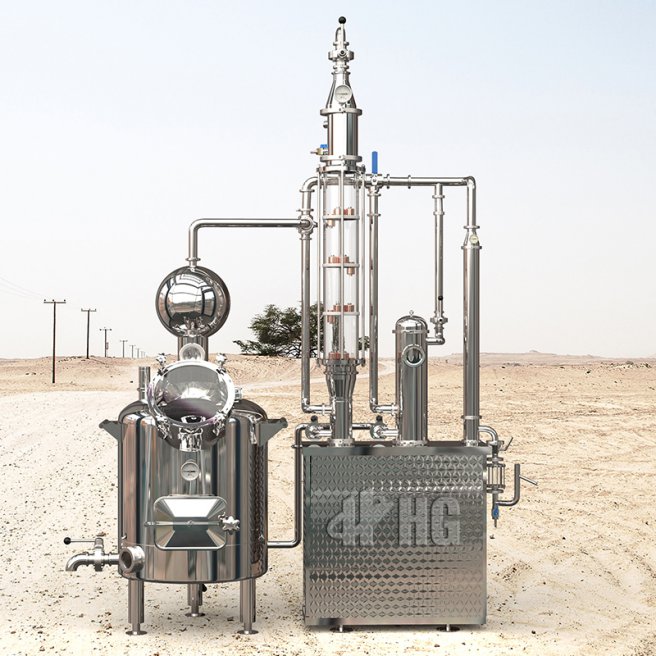

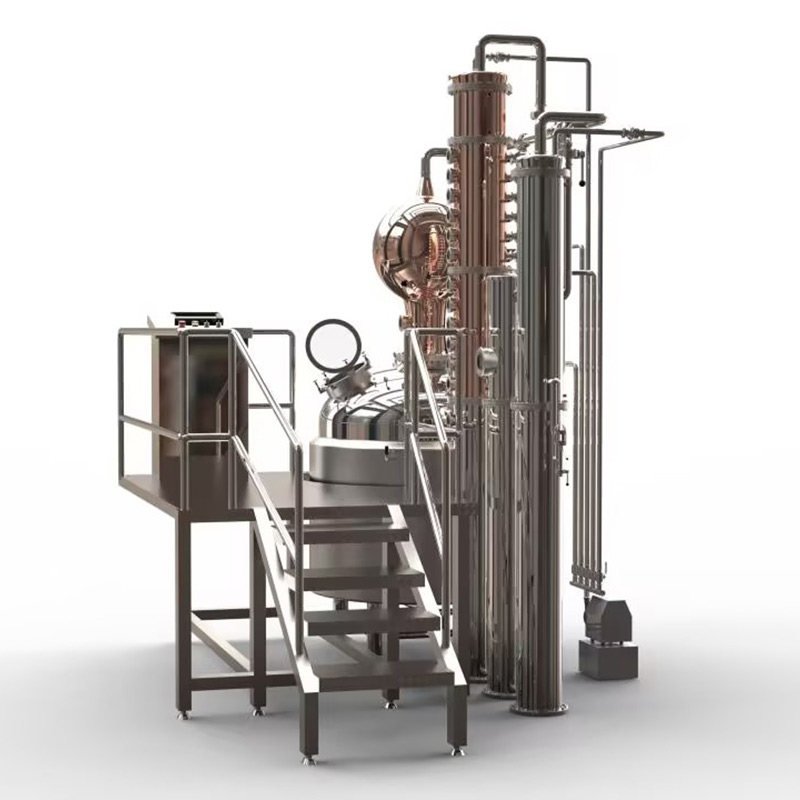

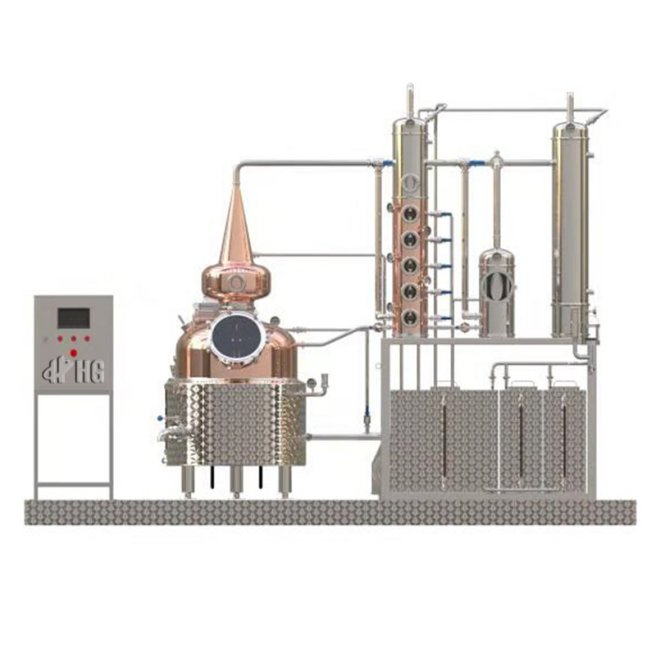

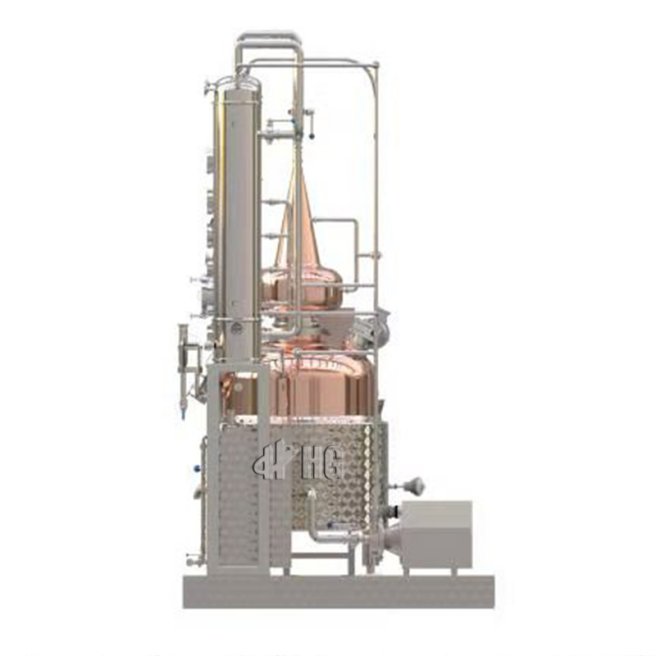

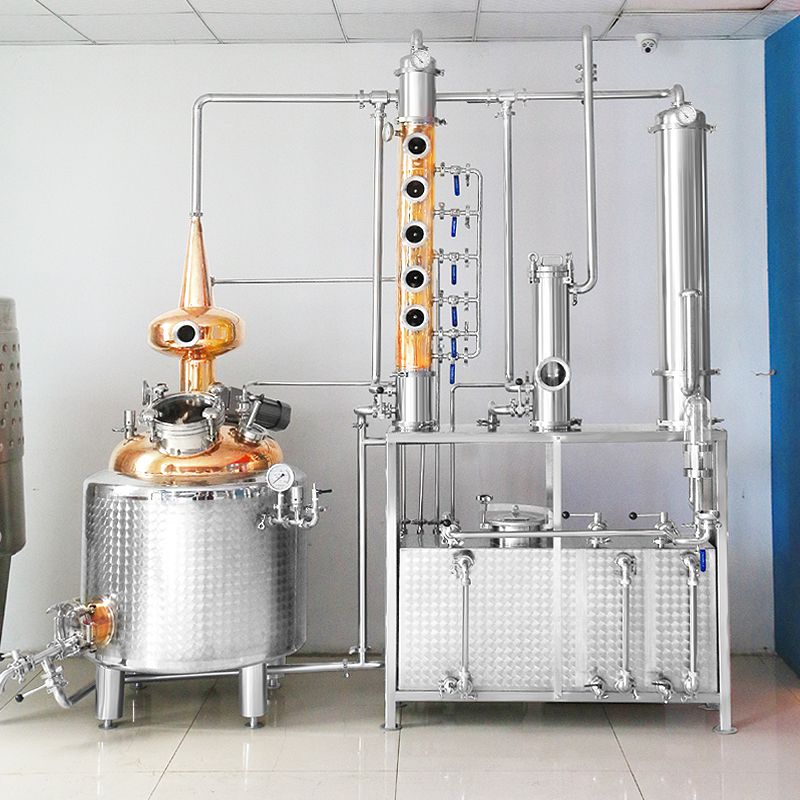

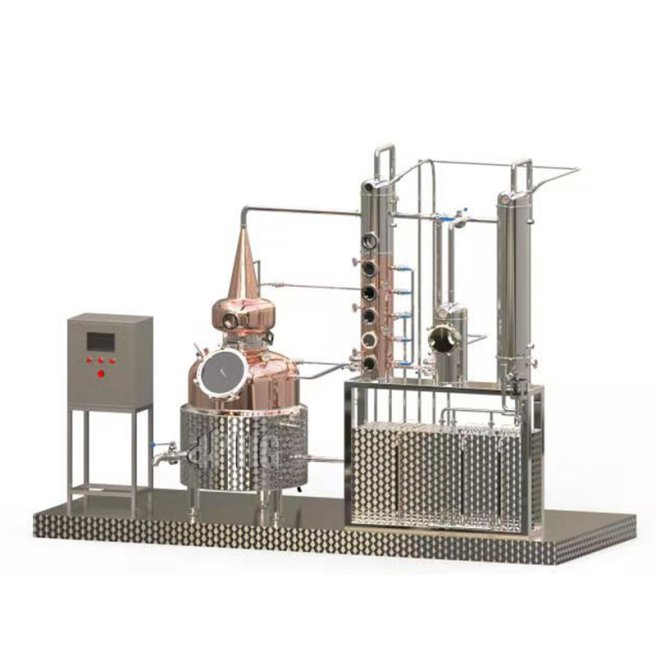

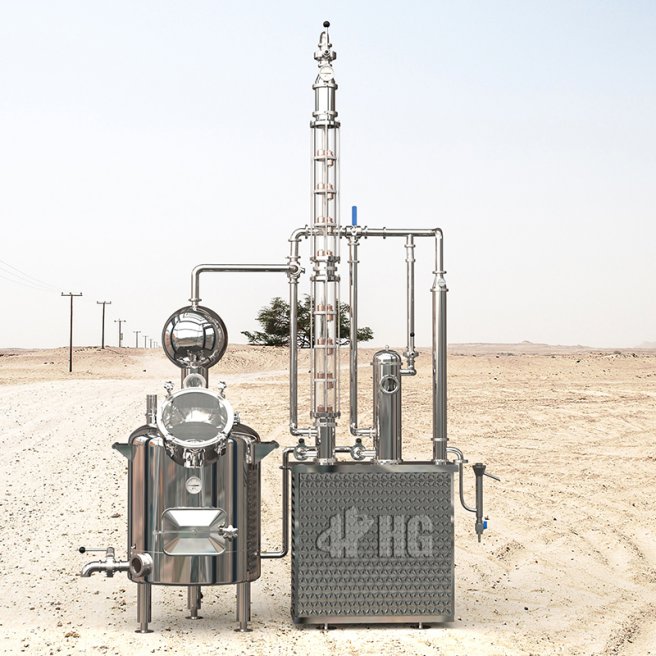

200-500L Distillation Equipment The column and plates produce high quality distillates and maintain the characteristic aroma of the raw material. The plant is equipped with all necessary instruments (manometer, thermometer and alcoholmeter) and is known for its user-friendliness.

VIDEO

FEATURES

  • One cavity boiler in stainless steel complete with
  • Copper or stainless steel insulation for cavity boiler
  • Stainless steel manway;
  • Copper stack rectification column
  • Four copper plates;
  • Two Sight glasses located on side of column; one for light and one for viewing
  • Side discharge outlet with valve DN 100, manual operated
  • Explosion proof agitator, (motor and motor starter not included)
  • Manometer and safety gauges for steam jacket
  • Reflux complete with flow meter
  • Copper tube condenser, dephlegmator
  • Stainless steel cooling coil

PARAMETERS

AVERAGE LOAD CAPACITY AVERAGE CYCLE TIME AVERAGE ENERGY CONSUMPTION AVERAGE STEAM CONSUMPTION
Liters Gallons Hours Hp/h Kg/s Lbs/h
5000 1315 9 4.0 625 1377.9
4000 1052 8 3.0 500 1102.3
3000 789 7 2.0 375 826.7
2500 658 6.5 2.0 313 690.0
2000 526 6 1.5 250 551.1
1500 395 5.5 1.5 180 396.8
1200 317 4.5 1.0 140 308.6
1000 263 4.5 1.0 120 264.5
700 184 4 1.0 90 198.4
500 131 3.5 1.0 60 132.2
300 78 3 0.7 40 88.1
200 52 2.5 0.7 30 66.1
