FEATURES
- CIP temperature ratings
- Custom geometry to fit your process & space
- Insulation designed for your installation and process
- Fully welded stainless steel outer sheathing
- Outdoor design with security & weather protections
- Ladder and catwalk systems (optional)
- Under-jacket glycol piping (optional)
- ASME designed for whatever pressure rating you require
- Thermowells for temperature monitoring
- External sight gauges
- Insulated and fully welded stainless steel outer jacket
- Construction from 316L/304 stainless steel
- Polished material and weld finishes
- Automated temperature control
- Agitation for product mixing
- Cylindrical Shell, Cooling jakcet
- Conical top, Slope bottom

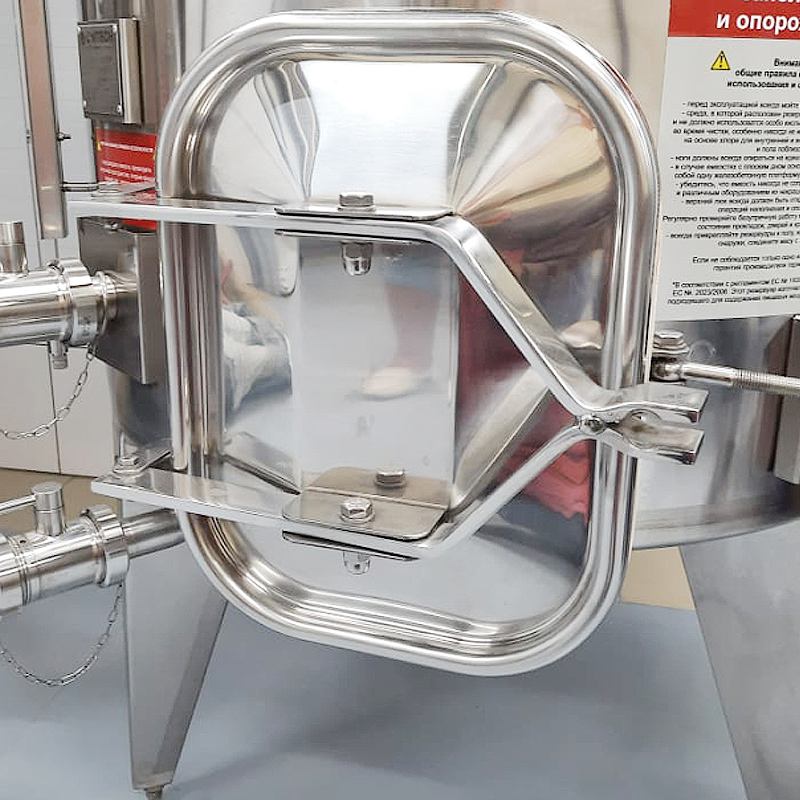

- Top round manhole, Rectangular manhole at side
- Glycol water inlet&outlet

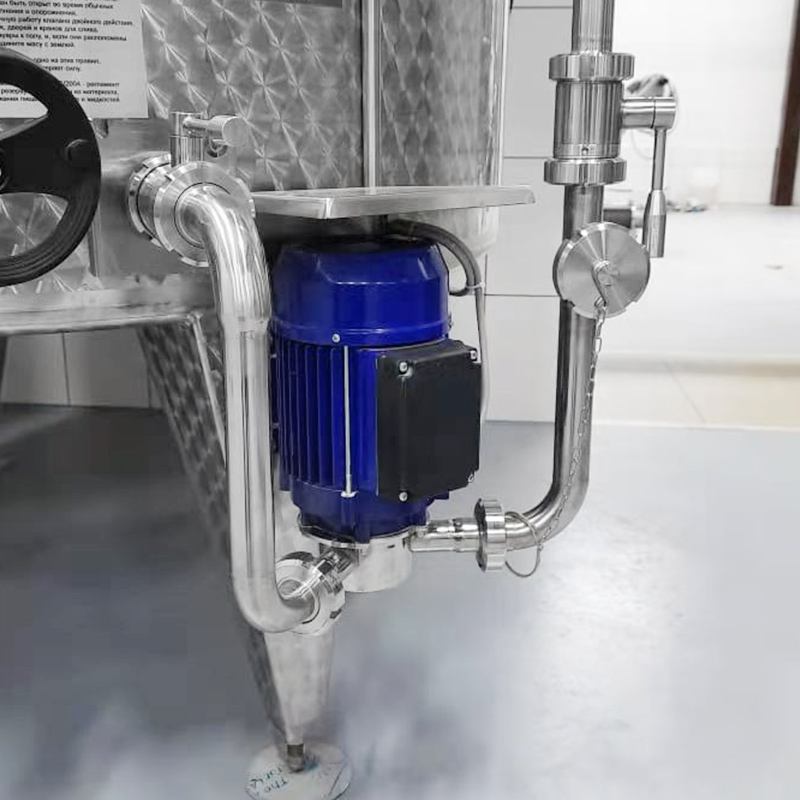

- Pump-over system

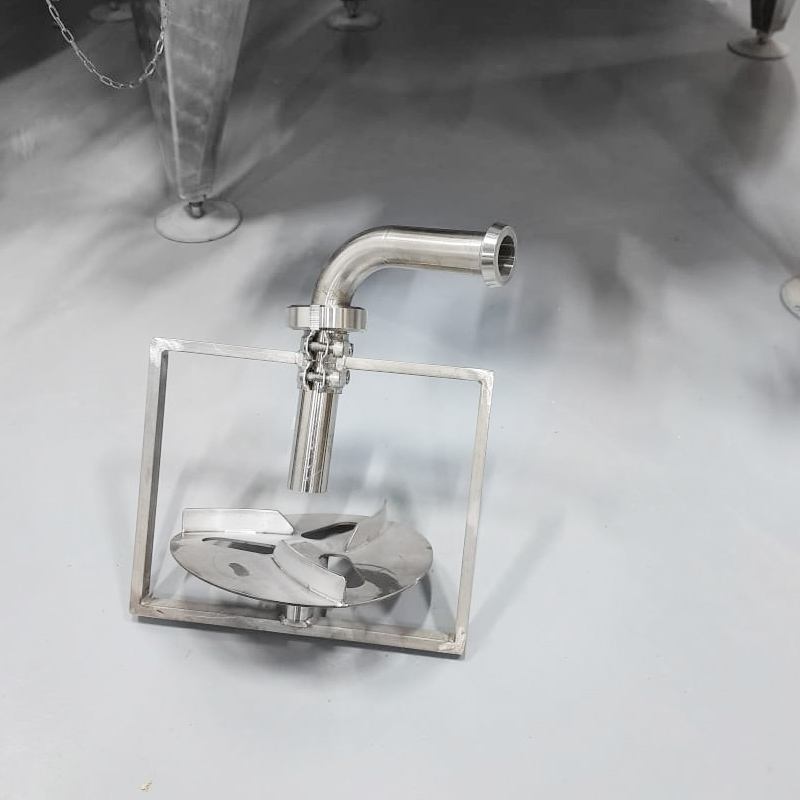

- Filtering grid
- Thermometer
- Levelling indicator
- Breathing valve, Sample valve
- Drainage outlet
- Lifting lugsx2, Ladder rack x1
PARAMETERS
| Model | Dimension (mm) | Height (mm) | Legs | Cooling area (m2) |
| HG-WF1 | Φ920*1500 | 2180 | 3 | 1.4 |
| HG-WF2 | Φ1270*1610 | 2600 | 3 | 2.2 |
| HG-WF3 | Φ1500*1830 | 3000 | 4 | 3 |
| HG-WF4 | Φ1600*2000 | 3250 | 4 | 4 |
| HG-WF5 | Φ1600*2440 | 3650 | 4 | 5 |
| HG-WF6 | Φ1800*2440 | 3500 | 4 | 5.5 |
| HG-WF8 | Φ1820*3050 | 4650 | 4 | 7 |
| HG-WF10 | Φ1900*3660 | 5050 | 4 | 8.5 |
| HG-WF12 | Φ1900*4270 | 5750 | 4 | 10 |
| HG-WF15 | Φ2000*4880 | 5950 | 4 | 12 |
| HG-WF20 | Φ2300*4880 | 6100 | 4 | 14 |
| HG-WF25 | Φ2600*4880 | 6050 | 4 | 15 |
| HG-WF30 | Φ2600*5500 | 6550 | 4/6 | 18 |
