Stainless Steel Wine Fermentation Tank, Fermenter

Brewery banner

Stainless Steel Wine Fermentation Tank, Fermenter

Stainless Steel Wine Fermentation Tank, Fermenter
22

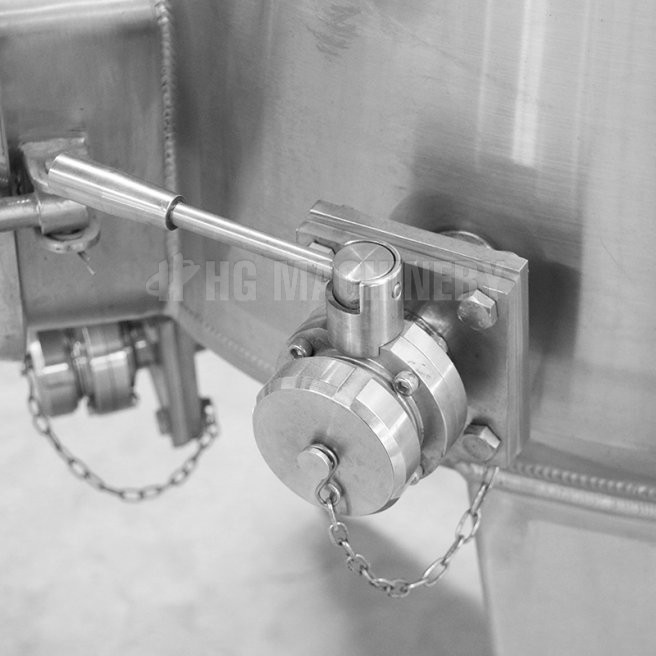

Butterfly valveButterfly valve

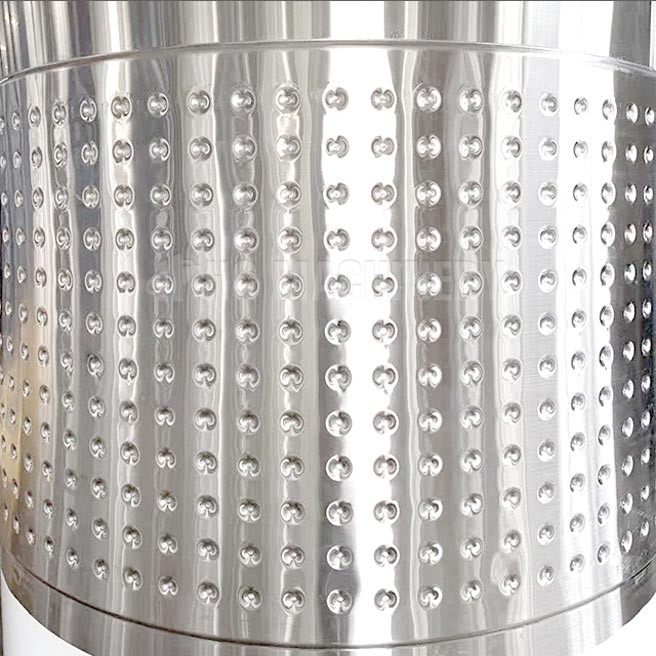

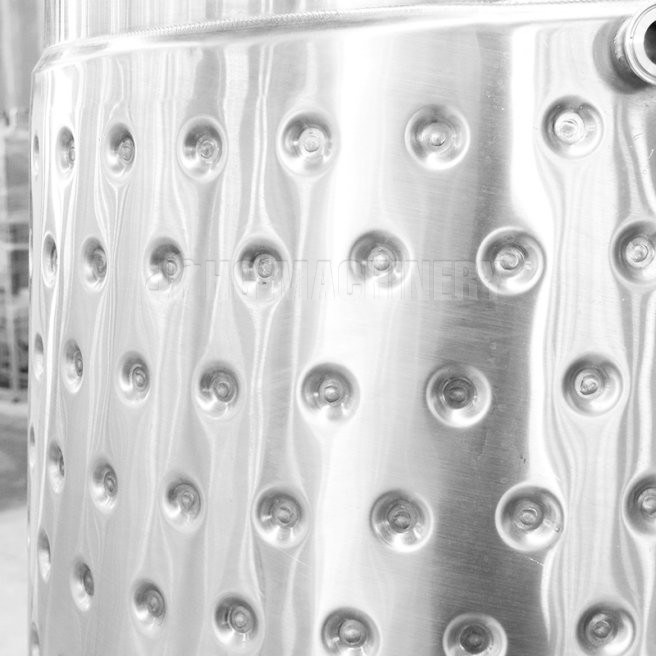

Cooling JacketCooling Jacket

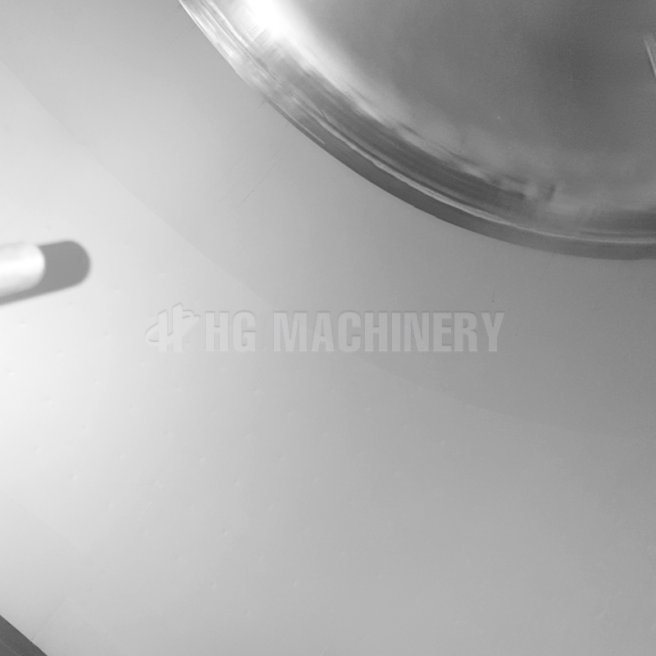

InsideInside

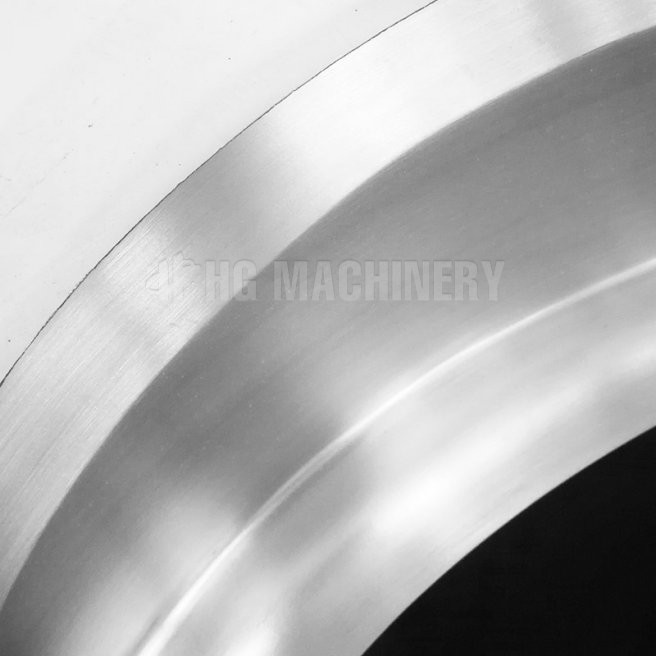

Polishing DetailPolishing Detail

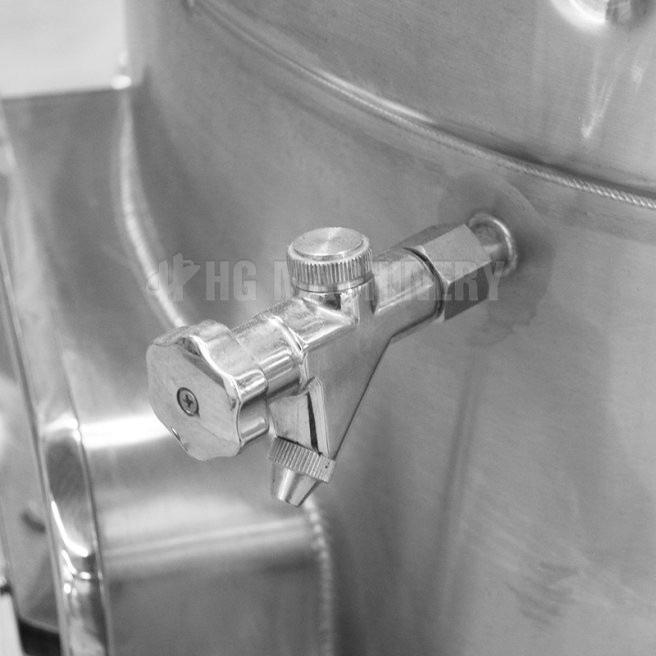

Sample ValveSample Valve

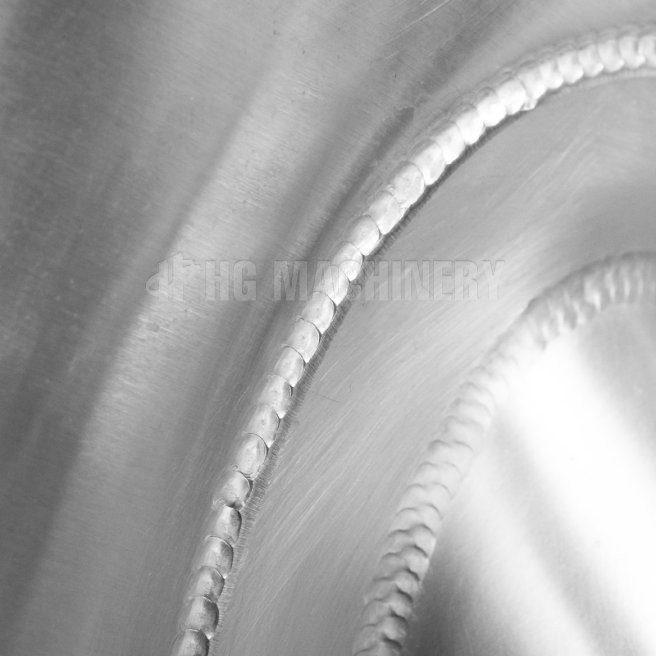

Welding DetailWelding Detail
Stainless Steel Wine Fermentation Tank, Fermenter 2 Butterfly valve Cooling Jacket Inside Polishing Detail Sample Valve Welding Detail

Stainless Steel Wine Fermentation Tank, Fermenter allow you to ferment and carbonate your cider all in one tank. Specialized ASME-stamped high pressure vessels that are designed to suit your beverage cider fermentation process. All the versions of the tank guarantee the utmost hygiene, reliability, practicality in use, safety and durability. Available in various models and sizes to suit a given customer’s specifications, these tanks are made of AISI 304 and 316 stainless steel, paying great attention to the choice of raw materials and to the quality of their manufacture and assembly.

VIDEO

FEATURES

  • CIP temperature ratings
  • Custom geometry to fit your process & space
  • Insulation designed for your installation and process
  • Fully welded stainless steel outer sheathing
  • Outdoor design with security & weather protections
  • Ladder and catwalk systems (optional)
  • Under-jacket glycol piping (optional)
  • ASME designed for whatever pressure rating you require
  • Thermowells for temperature monitoring
  • External sight gauges
  • Insulated and fully welded stainless steel outer jacket
  • Construction from 316L/304 stainless steel
  • Polished material and weld finishes
  • Automated temperature control
  • Agitation for product mixing
  • Cylindrical Shell, Cooling jakcet
  • Conical top, Slope bottom
  • Top round manhole, Rectangular manhole at side
  • Glycol water inlet&outlet
  • Pump-over system
  • Filtering grid
  • Thermometer
  • Levelling indicator
  • Breathing valve, Sample valve
  • Drainage outlet
  • Lifting lugsx2, Ladder rack x1

PARAMETERS

Model Dimension (mm) Height (mm) Legs Cooling area (m2)
HG-WF1 Φ920*1500 2180 3 1.4
HG-WF2 Φ1270*1610 2600 3 2.2
HG-WF3 Φ1500*1830 3000 4 3
HG-WF4 Φ1600*2000 3250 4 4
HG-WF5 Φ1600*2440 3650 4 5
HG-WF6 Φ1800*2440 3500 4 5.5
HG-WF8 Φ1820*3050 4650 4 7
HG-WF10 Φ1900*3660 5050 4 8.5
HG-WF12 Φ1900*4270 5750 4 10
HG-WF15 Φ2000*4880 5950 4 12
HG-WF20 Φ2300*4880 6100 4 14
HG-WF25 Φ2600*4880 6050 4 15
HG-WF30 Φ2600*5500 6550 4/6 18
