Beer Bottling Line

Brewery banner

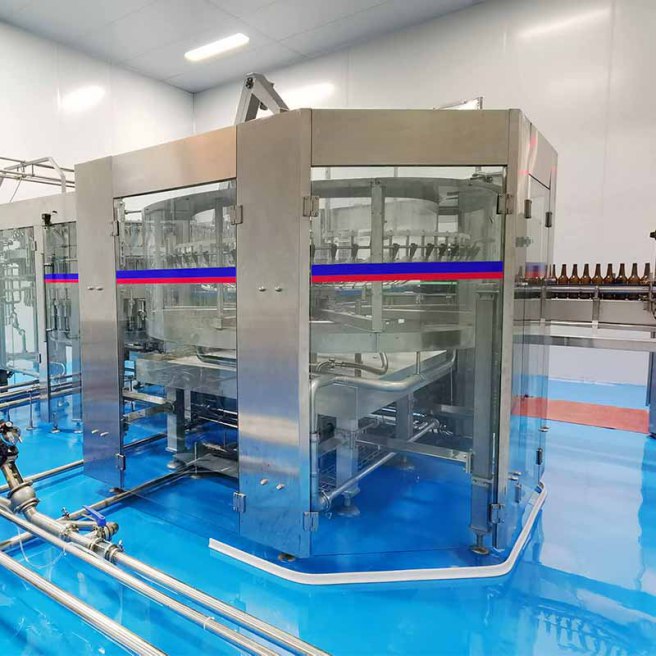

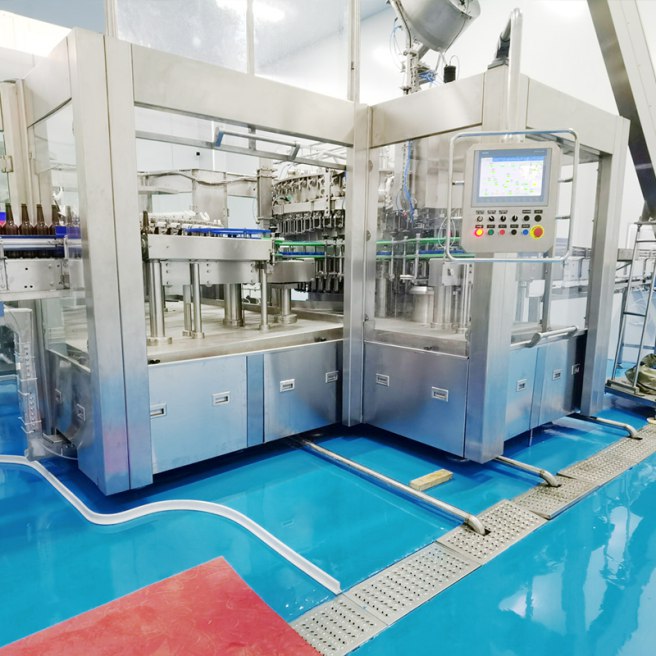

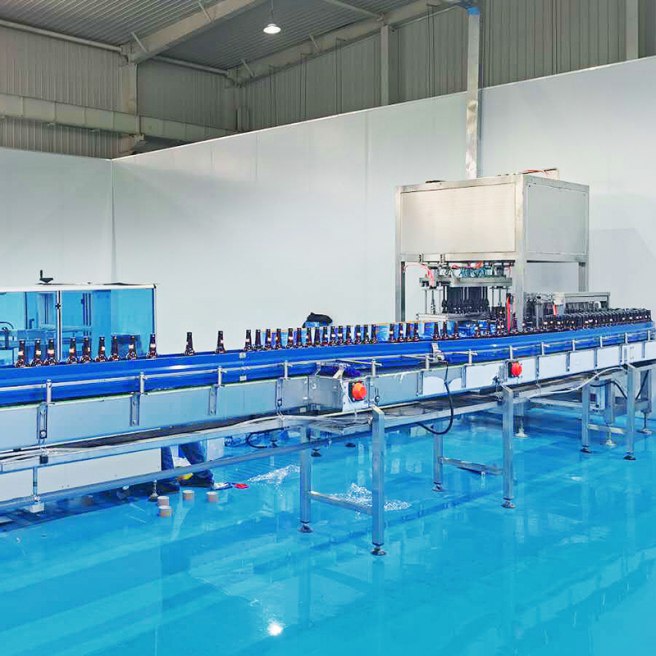

Beer Bottling Line

Beer Bottling Line

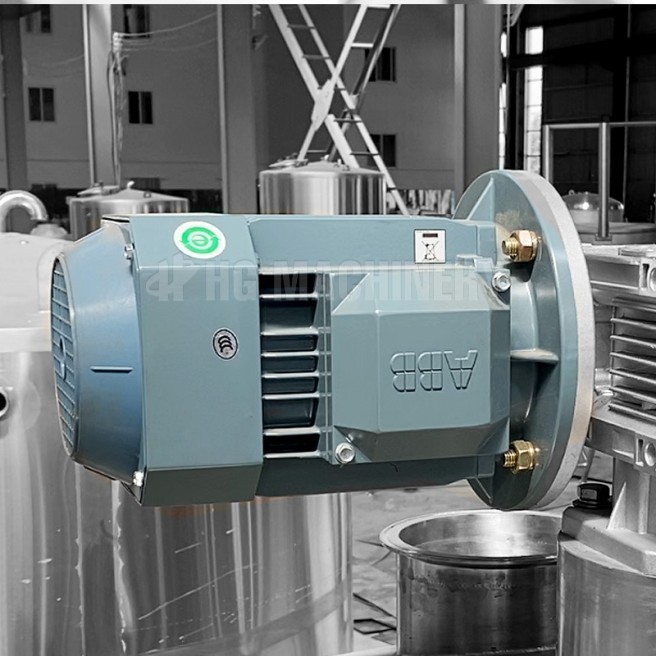

ABB MotorABB Motor

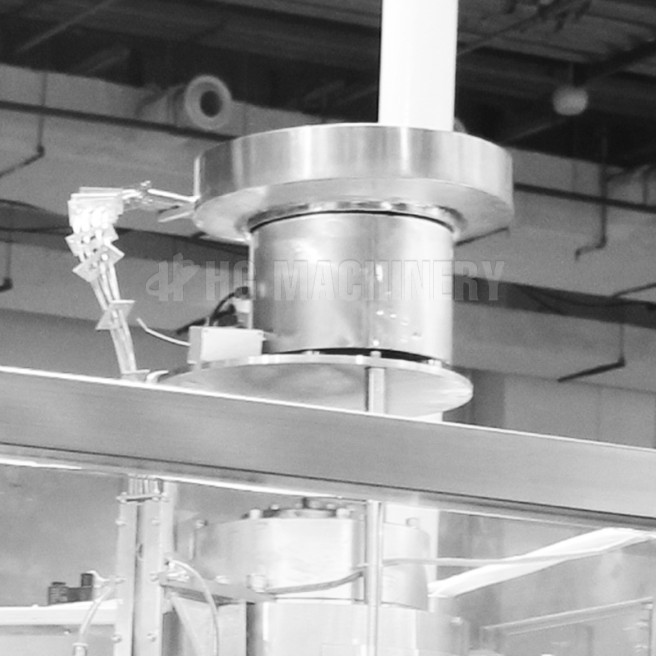

Cap UnscramblerCap Unscrambler

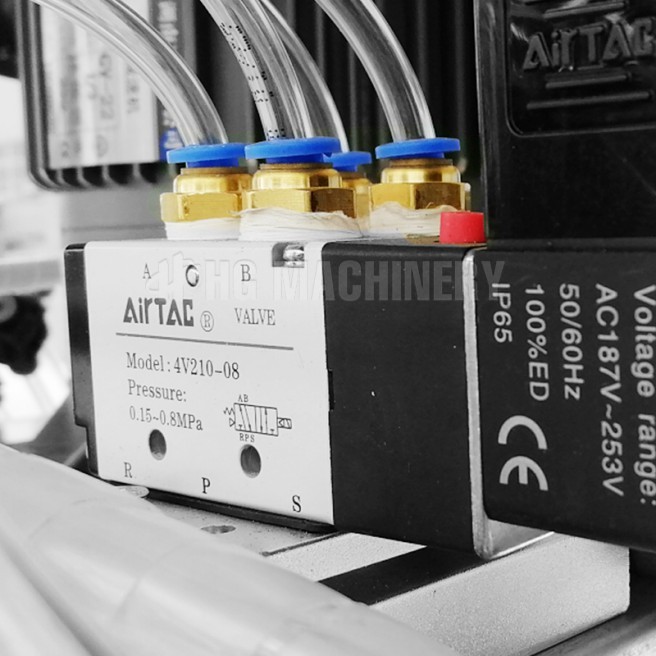

Electrical ComponentsElectrical Components

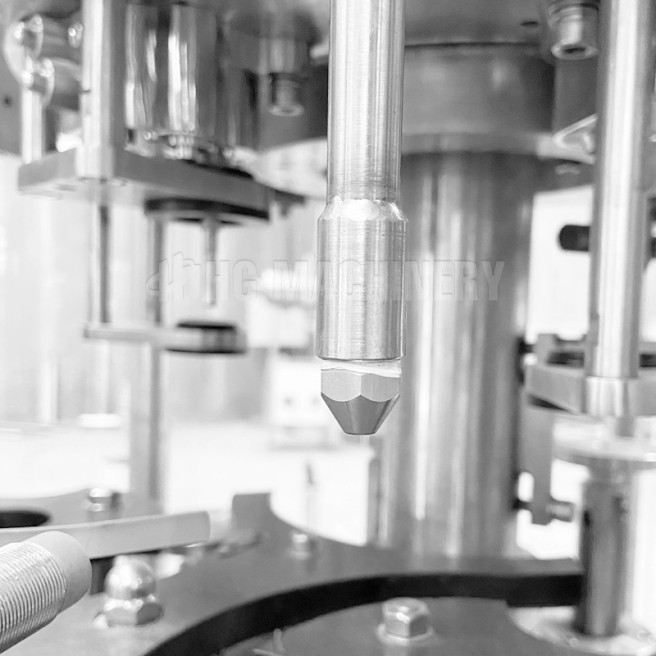

Foaming DeviceFoaming Device

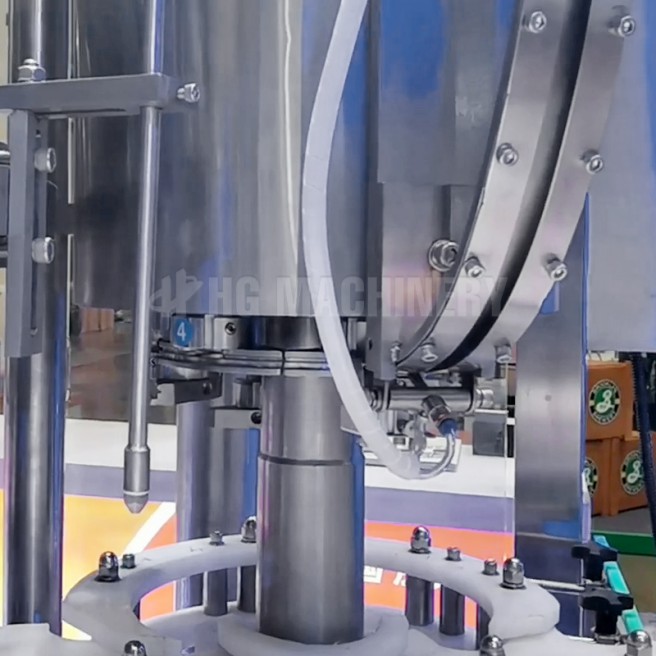

Mechanical CappingPartMechanical CappingPart

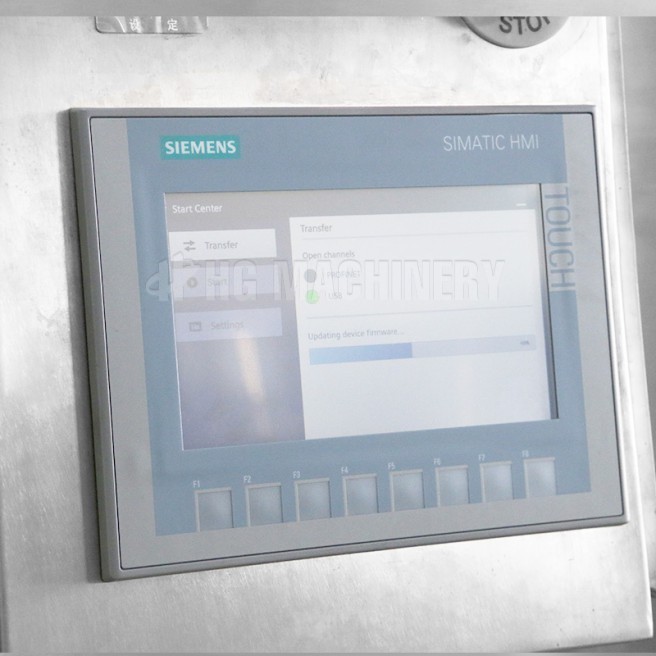

Siemens Touch ScreenSiemens Touch Screen
Beer Bottling Line ABB Motor Cap Unscrambler Electrical Components Foaming Device Mechanical CappingPart Siemens Touch Screen

Beer Bottling Line is specifically designed to beer filling and include double pre evacuation as a standard feature on some models to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation. The combination of high quality robust machine construction along with close attention to the needs of clean in place CIP ensures our beer fillers deliver efficient reliable bottling/canning production. As well as filling a wide range of all beer types, such as lagers, ales, stouts, unfiltered wheat beers and bottle conditioned beers HG's beer fillers can also be used for filling cider, hard cider, sparkling wines as well as carbonated soft drinks.

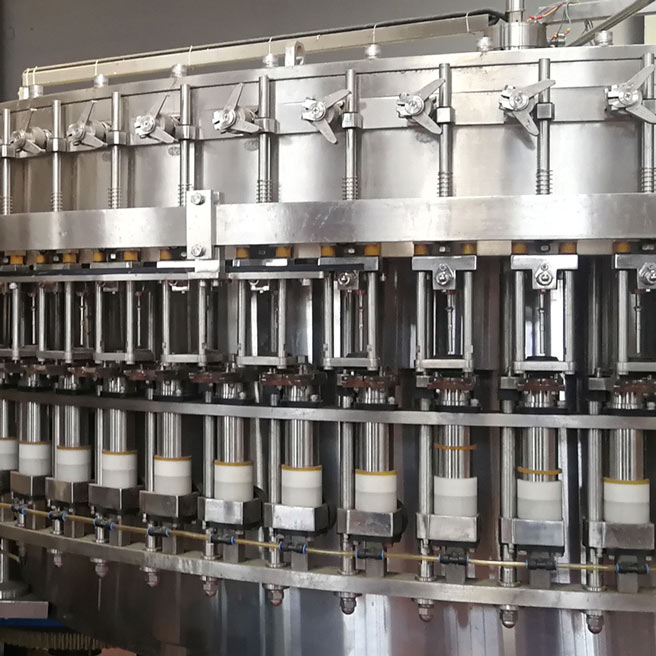

  • Isobaric filling principle and filling valve adopts high precision mechanical valve.
  • Fast filling speed, high precision in liquid level.
  • Siemens automatic controlling system, only starts to filling when there is a can, otherwise it will stop filling and no broken cans.
  • The filling process is cleaner and pure due to its twice evacuation of cans, and more stable because of isobaric filling operation.
  • Specifically designed to beer filling and include double pre evacuation as a standard feature to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation.
  • Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height.
  • Float switches in the filling cylinder ensure a smooth liquid inlet.
  • Capping: we replaced the pneumatic cover with a mechanical cover, the quality and stability of the gland are improved.
  • All-mechanical transmission: basically reaches zero failure rate.
  • Compact conformation, Easy installation,use & maintenance.
  • Conveyor can feeding technology instead of the feeding screw and conveyer chain. Easily change the can change over parts.
  • The blocking canneck technology to convey cans. It does not adjust the height of equipment when the type of can is changed. According to the diameter of can, you could change corresponding nylon elements such as arc slipper guide, thumb wheel etc.
  • Those stainless steel can nips of wash are designed especially, they don't touch thread position of phialine, in order to avoid the second
  • pollution.
  • All of parts directly contacted with material are adopted with food stage stainless steel 304 without dead angle. So they can be cleaned easily.
  • High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.


Capacity 10000BPH(330ml)
Rinsing heads 40
Filling heads 40
Capping heads 10
Bottle type height: 150~ 300mm bottle neck: φ50-φ85mm bottle dia: 50-75mm
Air consumption 0.2m 3/min (0. 4~0.6Mpa)
CO2consumption 1.6kg/l000L
N.W. 8000Kg
Dimensions (mm) 4200×3000×27000(L×W×H)
Power main motor: 5.5KW
hopper motor: 0 .37KW
vacuum pump motor: 5.5 KW
chain motor: 0.75KW
Water consumption Washing 0.8 m3/h
Vacuum pump 0.20 m3/h
Working voltage AC Customized by the customers’ electrical conditions.
Working voltage DC Customized by the customers’ electrical conditions.


Item Production capacity Filling method Material Dimensions
HG-4-4-1 240-360BPH Isobaric filling SUS304 1550*550*1750mm
HG-6-6-1 500-800BPH Isobaric filling SUS304 1520*1125*2350mm
HG-8-8-3 800-1000BPH Isobaric filling SUS304 1850*1600*2500mm
HG-16-16-6 2000BPH Isobaric filling SUS304 2300*1900*2500mm
HG-40-40-10 8000-10000BPH Isobaric filling SUS304 4200*3000*2700mm
HG-SEMI-4-1 100-300CPH Isobaric filling SUS304 1700*750*2200mm
HG-4-1 500-700CPH Isobaric filling SUS304 1800*1200*2200mm
HG-12-1 1500-2000CPH Isobaric filling SUS304 2150*1300*1900mm
HG-20-4 6000CPH Isobaric filling SUS304 2200*1750*1900mm
