1000BPH(17BPM) Beer Bottling Machine

Brewery banner

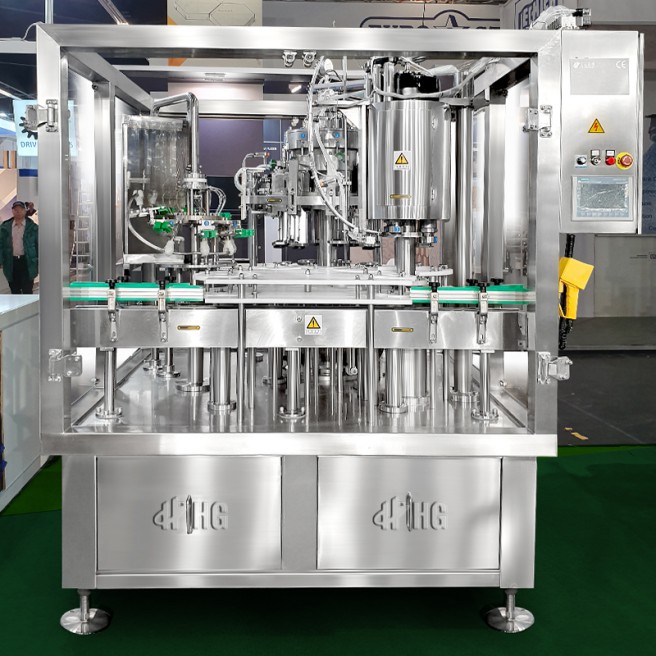

1000BPH(17BPM) Beer Bottling Machine

1000BPH(17BPM) Beer Bottling Machine

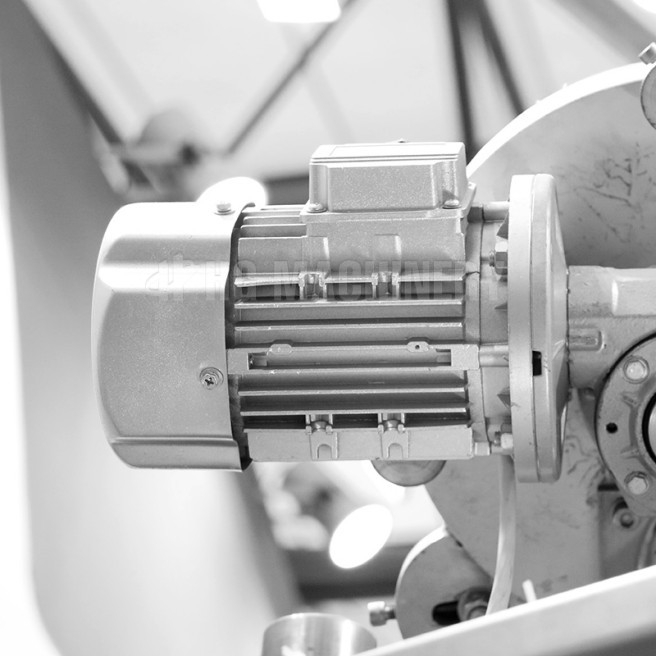

ABB MotorABB Motor

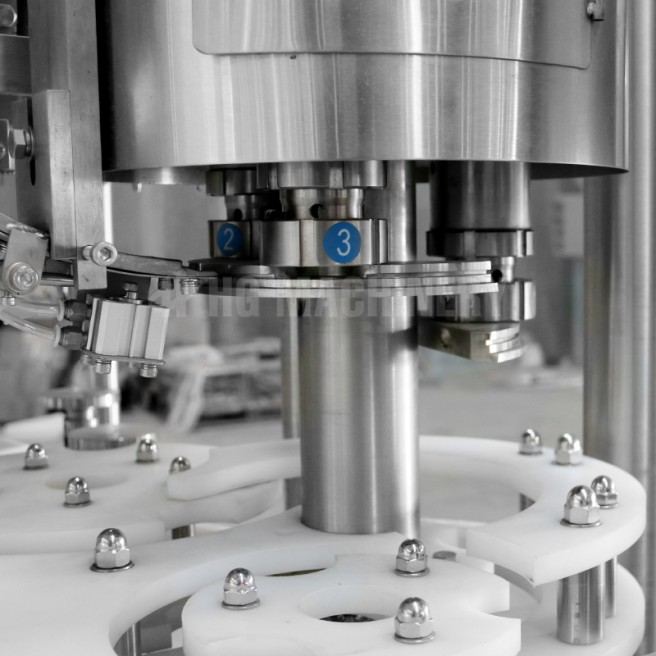

Capping PartCapping Part

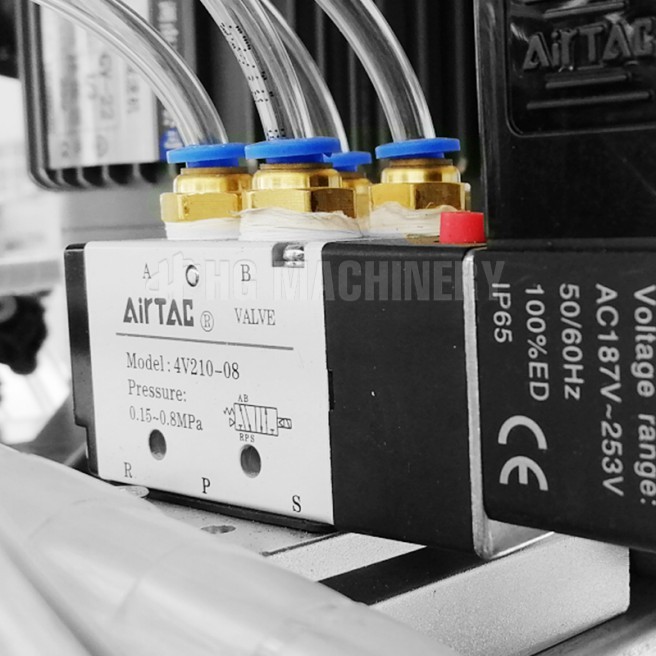

Electrical ComponentsElectrical Components

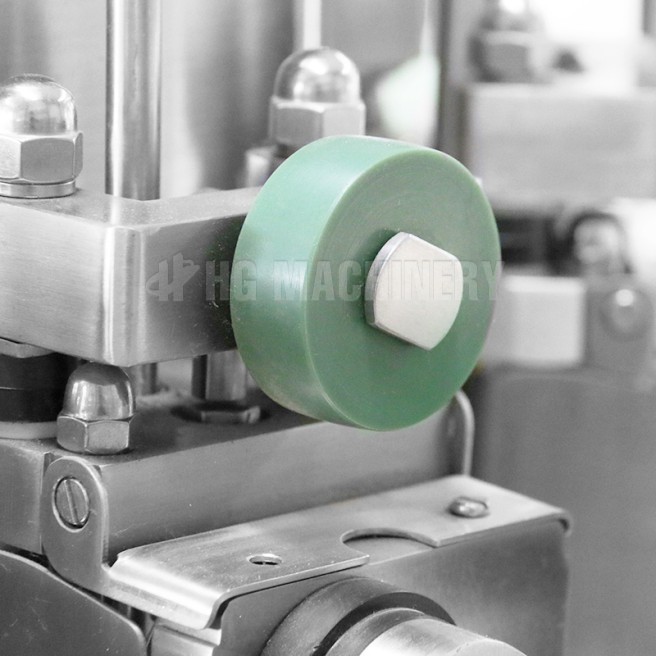

External ValveExternal Valve

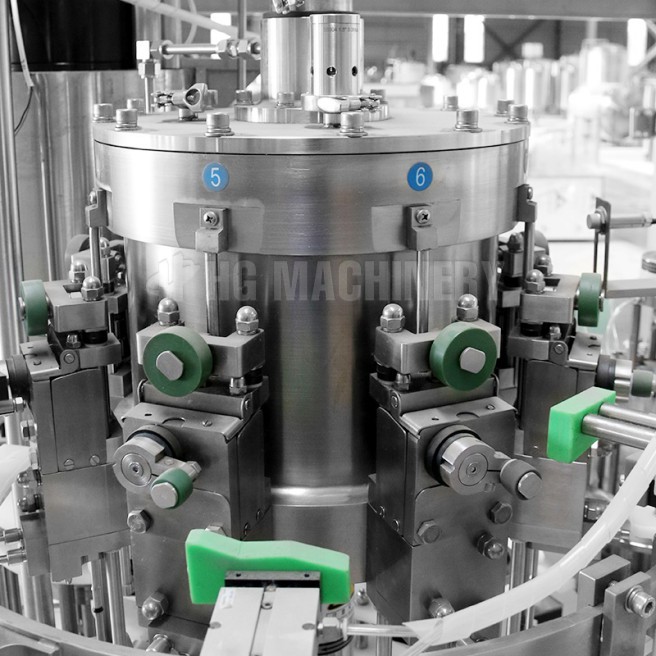

Filling PartFilling Part

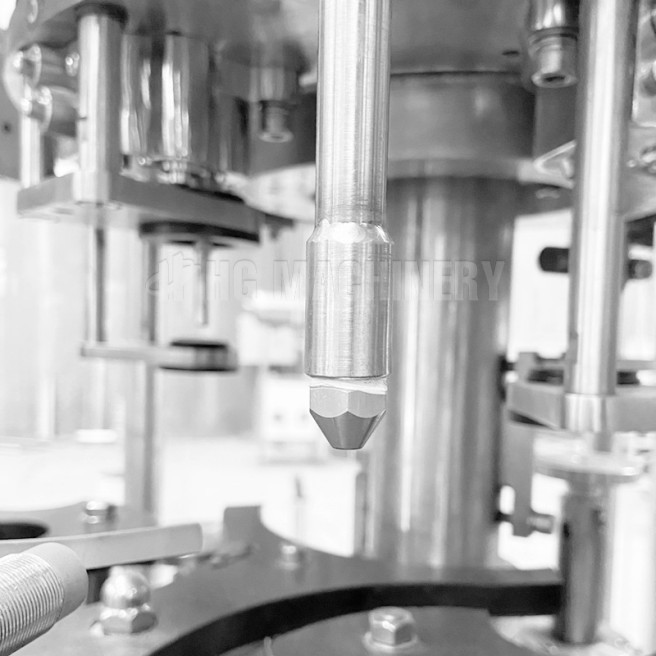

Foaming DeviceFoaming Device

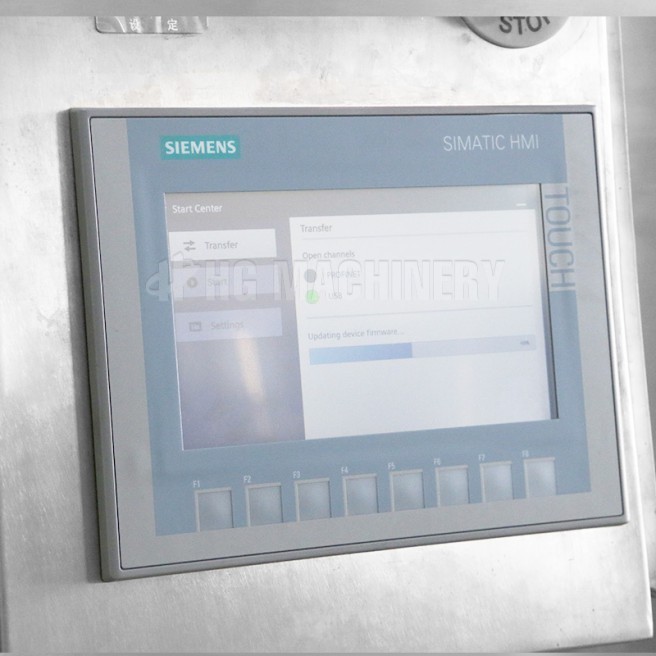

Siemens Touch ScreenSiemens Touch Screen

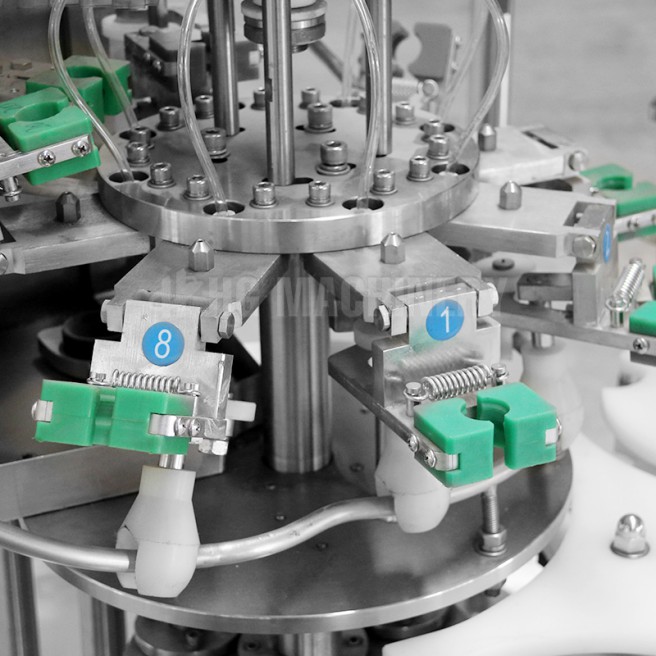

Washing PartWashing Part
1000BPH(17BPM) Beer Bottling Machine ABB Motor Capping Part Electrical Components External Valve Filling Part Foaming Device Siemens Touch Screen Washing Part

1000BPH(17BPM) Beer Bottling Machine is specifically designed to beer filling and include double pre evacuation as a standard feature on some models to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation. The combination of high quality robust machine construction along with close attention to the needs of clean in place CIP ensures our beer fillers deliver efficient reliable bottling production. As well as filling a wide range of all beer types, such as lagers, ales, stouts, unfiltered wheat beers and bottle conditioned beers HG's beer fillers can also be used for filling cider, hard cider, sparkling wines as well as carbonated soft drinks.

VIDEO

FEATURES

  • Isobaric filling principle and filling valve adopts high precision mechanical valve.
  • Fast filling speed, high precision in liquid level.
  • Siemens automatic controlling system, only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles.
  • The filling process is cleaner and pure due to its twice evacuation of bottles, and more stable because of isobaric filling operation.
  • Specifically designed to beer filling and include double pre evacuation as a standard feature to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation.
  • Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height.
  • Float switches in the filling cylinder ensure a smooth liquid inlet.
  • Capping: we replaced the pneumatic cover with a mechanical cover, the quality and stability of the gland are improved.
  • All-mechanical transmission: basically reaches zero failure rate.
  • Compact conformation, Easy installation,use & maintenance.
  • Conveyor bottle feeding technology instead of the feeding screw and conveyer chain. Easily change the bottle change over parts.
  • The blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle is changed. According to the diameter of bottle, you could change corresponding nylon elements such as arc slipper guide, thumb wheel etc.
  • Those stainless steel bottle nips of wash are designed especially, they don't touch thread position of phialine, in order to avoid the second
  • pollution.
  • All of parts directly contacted with material are adopted with food stage stainless steel 304 without dead angle. So they can be cleaned easily.
  • High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

PARAMETERS

Item Parameters
Washing heads 8
Vacuum pump 0. 20m3/h
Filling heads 8
Power main motor: 1.5KW
hopper motor: 0 .18KW
vacuum pump motor: 1.1KW
chain motor: 0.37KW
Capping heads 3
Dimensions 1850×1600×2500mm(L*W*H)
Capacity 500-800BPH
N.W. 1800Kg
Bottle type height: 150~ 300mm bottle neck: ①50~①85mm bottle diameter:50-75mm
Working voltage AC Customized by the customers' electrical conditions.
Air consumption 0.2m3/min(0.4~0.6Mpa)
Control voltage DC Customized by the customers' electrical conditions.
CO2 consumption 1.6kg/l000L
Frequency converter SIEMEMS
Water consumption 0.8 m3/h
PLC SIEMEMS
Touch screen Weinview
Pneumatic element SMC

MODELS & SPECS

Item Production capacity Filling method Material Dimensions
HG-4-4-1 240-360BPH Isobaric filling SUS304 1550*550*1750mm
HG-6-6-1 500-800BPH Isobaric filling SUS304 1520*1125*2350mm
HG-8-8-3 800-1000BPH Isobaric filling SUS304 1850*1600*2500mm
HG-16-16-6 2000BPH Isobaric filling SUS304 2300*1900*2500mm
HG-40-40-10 8000-10000BPH Isobaric filling SUS304 4200*3000*2700mm
HG-SEMI-4-1 100-300CPH Isobaric filling SUS304 1700*750*2200mm
HG-4-1 500-700CPH Isobaric filling SUS304 1800*1200*2200mm
HG-12-1 1500-2000CPH Isobaric filling SUS304 2150*1300*1900mm
HG-20-4 6000CPH Isobaric filling SUS304 2200*1750*1900mm
